Triple Stroboscope Circuit

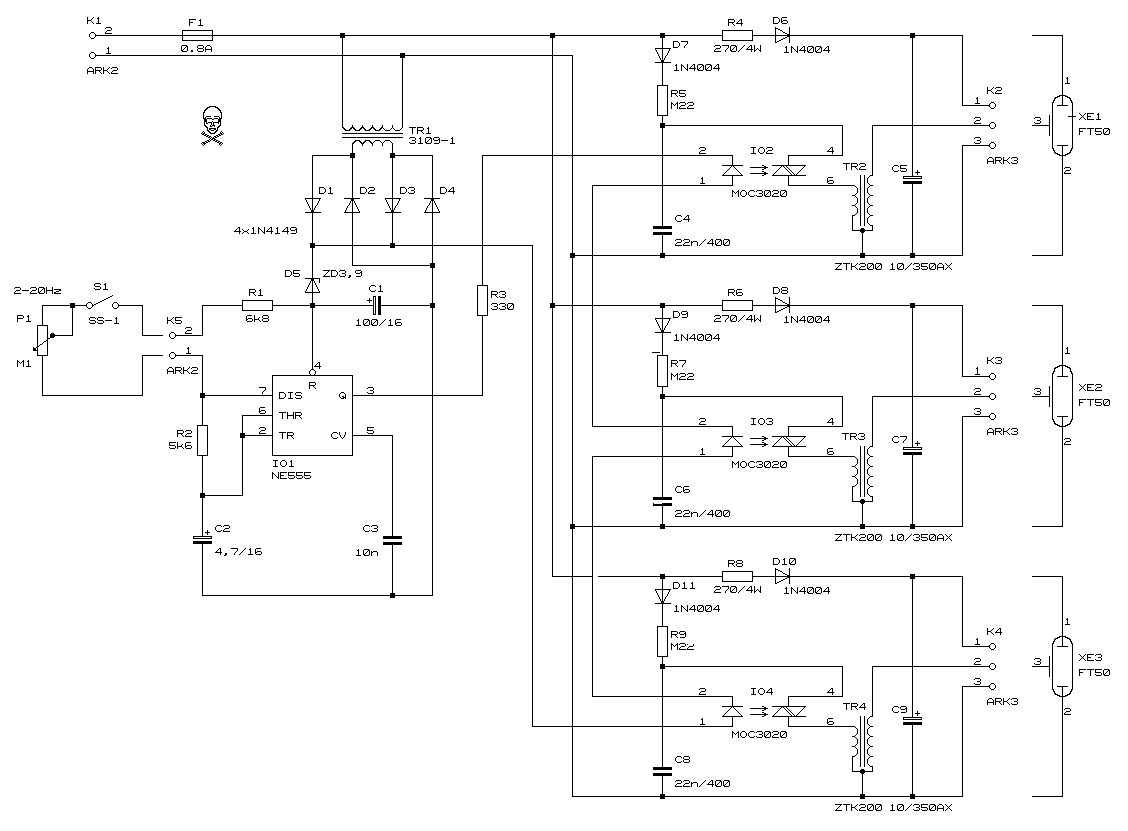

Circuit diagram

This circuit enables observation of movement between other stroboscopes. Generation of rectangular signal is based on NE555. This circuit requires a low power supply that is made from a simple transformer TR1, traditional rectifier bridge and zener diode.
NE555 works in multivibrator mode generating astable pulses of 2Hz to 20Hz.
The frequency is adjusted by potentiometer P1. The control potentiometer P1 can be placed as far as 30 meters away, for suspension of stroboscope�s work from far away.
It is east to find all parts with facility in every electronic store, but it may be difficult to find the transformers TR2, TR3, TR4.
Take extreme care handling this circuit because near C5-C7-C9 high voltages are present.

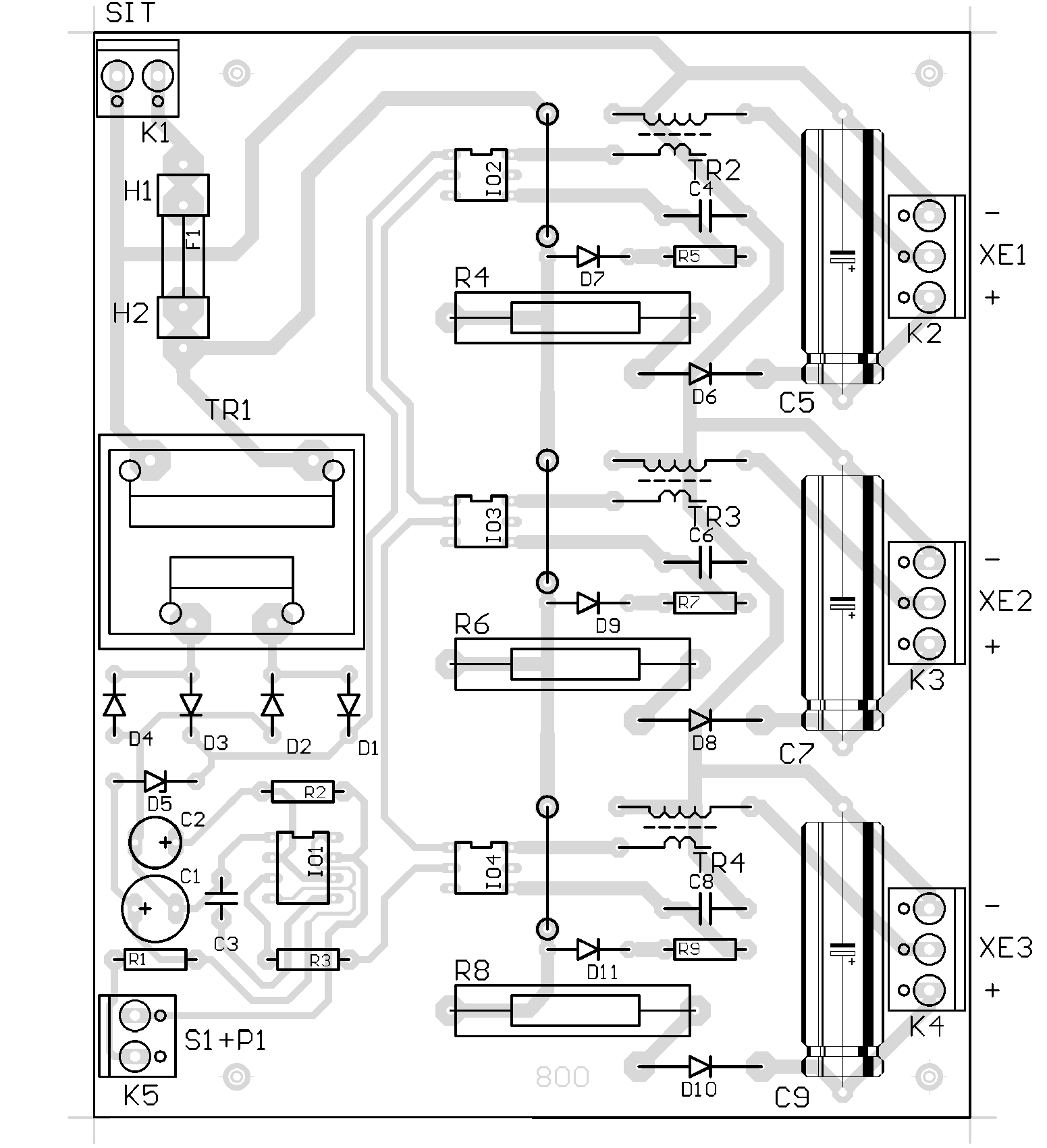

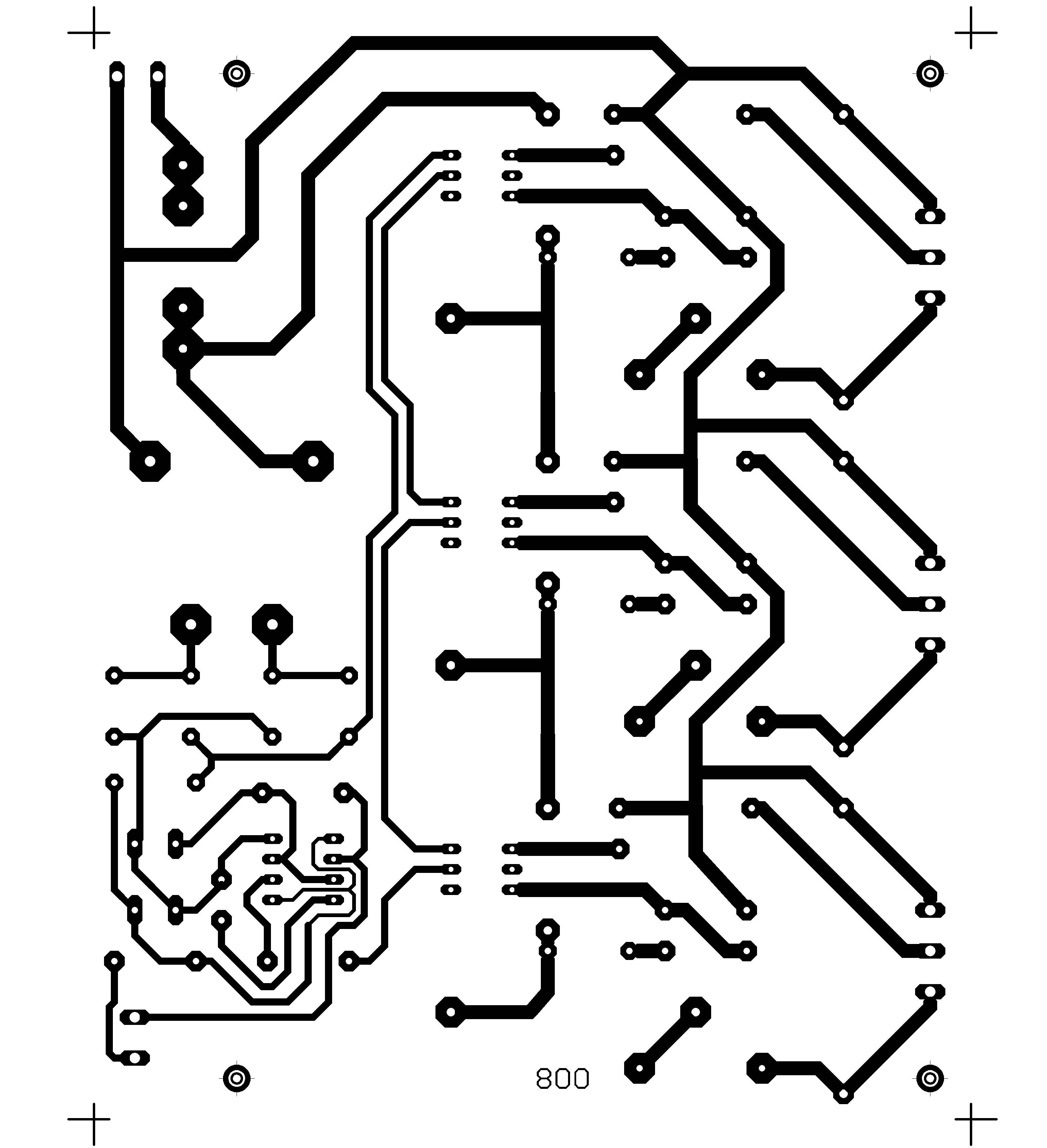

Parts
R1 = 6,8 k
R2 = 5,6 k
R3 = 330
R4,R6,R8 = 270 / 5 W
R5,R7,R9 = 220 k
P1 = 100 k linear potentiometer
C1 = 100 uF / 16 V
C2 = 4,7 uF / 16 V
C3 = 10 nF
C4,C6,C8 = 22 nF / 400 V, MKS
C5,C7,C9 = 10 uF / 350 V, electrolytic (high quality)
TR1 = Ordinary transformer 230 V / 9 V, 1,5 VA
TR2,TR3,TR4 = stroboscope transformer np (ZTK200)
D1,D2,D3,D4 = 1N4149
D5 = BZX85V Zener 3.9
D6,D7,D8,D9,D10,D11 = 1N4004
IO1 = NE555
IO2,IO3,IO4 = MOC3020
XE1,XE2,XE3 = stroboscope lamps FT50
F1 = Fuse 0.8 A, 20 mm
K1,K5 = connectors ARK200-2
K2,K3,K4 = connectors ARK200-3
S1 = Switch
