Metal Detector
Description:
A single chip metal detecor with a range of a few inches. This is useful for decting nails or screws in walls and floors, or for locating buried mains cable.
Notes:

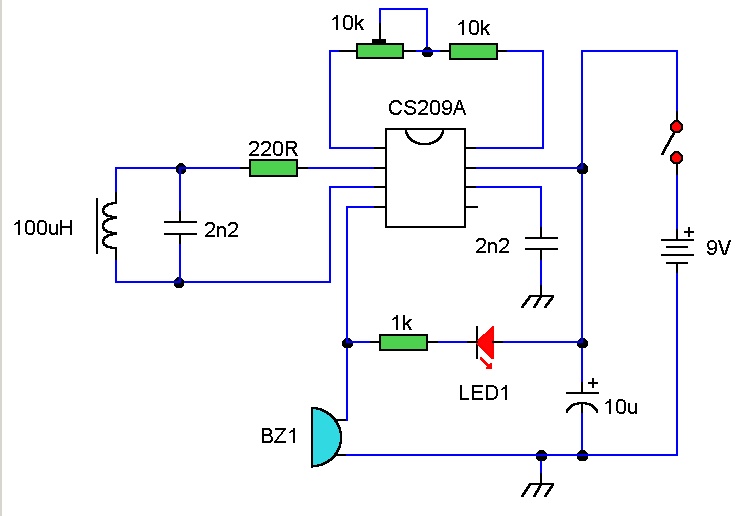

The heart of the circuit is a single IC the CS209A made by Cherry Semiconductor. The detector, is a single 100uH choke. The IC has an integral oscillatorm the choke forms part of an external LC circuit, its inductance being altered by the proximity of metal objects. It is the change in oscillation that is amplified and demodulated. Led 1 will light and the buzzer will sound when the choke change sinductance. Set up is easy, VR1 is adjusted with the cjoke away from any metal source so that the LED lights and buzzer sounds. The control is backed off so that the LED goes out and buzzer stops. Now when the choke comes into contact with any metal object that alters its inductance, LED 1 and the buzzer will activate.
Since I first wrote this article Maplin no longer sell the CS209A. However the same part CS209AYN may be bought from ON semiconductors. Note that the package 626-05 is the 8 pin DIN type that is required.
CS209AYN8
4 Star Electronics also stock the CS209.
