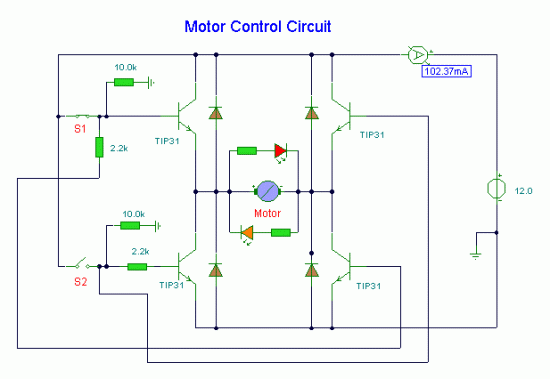

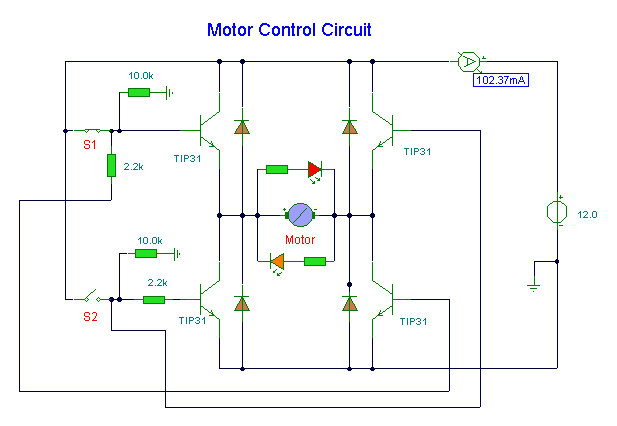

DC Motor Control Circuit
Notes:
Here, S1 and S2 are normally open , push to close, press button switches. The diodes can be
red or green and are there only to indicate direction. You may need to alter the TIP31 transistors
depending on the motor being used. Remember, running under load draws more current. This
circuit was built to operate a small motor used for opening and closing a pair of curtains. As an
advantage over automatic closing and opening systems, you have control of how much, or how
little light to let into a room. The four diodes surriunding the motor, are back EMF diodes. They
are chosen to suit the motor. For a 12V motor drawing 1amp under load, I use 1N4001 diodes.
