Continuity Tester Circuit

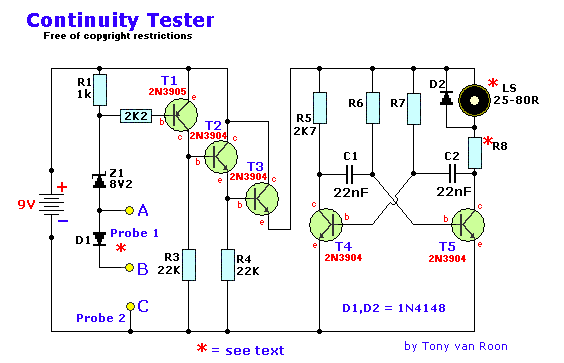

Circuit diagram

Parts
R1 1K
R2 2K2
R3,R4 22K
R5 2K7
R6,R7 56K
R8 *See text
C1,C2 22nF
D1,D2 1N4148
Z1 8V2, 1/4 watt
T1 2N3905 (PNP)
T2,3,4,5 2N3904 (NPN)
9volt Alkaline battery
suitable loudspeaker
housing & probes

An on-off switch is unnecessary. D1 is used when the battery
is brand-new and giving over the nominal 9volt, T1, T2 and T3
acting as the switch for supplying power to the multivibrator.

Design Considerations:
Several simple circuits were tried -- a lamp, battery and probes still demanded the attention of the eyes; replacing the lamp with a buzzer was more successful but needed some three to four volts and gave no indication of a series semiconductor junction if the polarity was correct while the current flow was large enough to damage the more delicate devices within the circuit under test. An extension of the principle to operate an astable (multivibrator) type of oscillator gave good audibility but would operate from zero through to several thousands of ohms and so was too general an indication.
A set of specification was becoming apparent; (1) probe current to be small; (2) probe voltage to be as low as possible, preferable less than 0.3V to avoid seeing germanium or silicon junctions as a continuous circuit; (3) no on/off switch to be used.
The above circuit was the result and several have been designed and are earning their keep for both "heavy" electricians and electronic technicians.

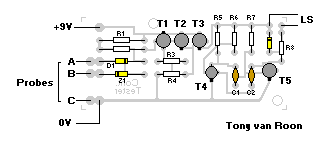

The pcb pattern above is shown full-size at 73mm x 33mm (2-7/8" x 1-1/4")

How it works:
Starting with a 9 volt supply, when the probes are shortcircuited there is a 8.2 volt drop accross the zener diode Z1 leaving a maximum of 0.8 volt across R1. Aplication of Ohms' Law shows that a maximum current of 0.8/1,000 = 0.8 mA lows via the probes and this satisfies the first design requirement of low probe current.
T1 is a silicon type and the bse-emitter voltage will need to be about 0.5 to 0.6 volt to forward-bias the junction and initiated collector current. With a maximum of 0.8 volt availabe across R1 it is seen that if a semiconductor junction or resistor is included in the outside circuit under test and drops only 0.3 volt then there will be 0.5 volt remaining across R1, barely enough to bias T1 into conduction.
Assuming that the probes are joined by nearly zero resistance, the pd across R1 is 0.7 - 0.8 volt and T1 turns on, its collector voltage rising positively to give nearly 9 volt across R3. T2 is an emitter follower and its emitter thus rises to about 8.3 volt and this base voltage on T3 (a series regulator circuit or another emitter-follower if you prefer it) results in some 7.7 volt being placed across the T4 - T5 oscillator circuit. All the transistors are silicon types and unless the probes are joined, the only leakage current flows from the battery thus avoiding the need for an On-Off switch. When not in use, the battery in the tester should have a life in excess of a year. My own unit lasted for more than 2 years with one Alkaline battery.

Descriptive Notes:
The output from the speaker is not loud but is more than adequate for the purpose. I used a small transistor radio loudspeaker with an impedance of 25 - 80 Ohms. The resistance should be brought up to 300 ohms by adding series resistor R8. Example, if your speaker is 58 ohms, then R8 = 242 ohms.
An experiment worth doing is to select the value of either C1 or C2 to produce a frequency oscillation that coinsides with the mechanical resonant frequency of the particular loudspeaker in use. Having choosen the right value, which probably lies in the range of 10n - 100n, the tone will be louder and more earpiercing. A "freewheel" diode D2 is connected across the transducer since fast switching sction of the oscillator circuit can produce a surprisingly high back e.m.f. across the coil and these high voltages might other wise lead to transistor damage of breakdown.
Zener diodes do not provide an absolutely constandt volt-drop regardless of current; at the 0.8 mA design current an 8.2 volt diode will quite possibly give only about 8.0 volt drop since test current for zener selection and marking is typically 5 mA or more. A further possible source of error is the battery; the one suggested nominally provides 9V but a brandnew one may be as much as 9.5 to 9.8V until slightly run-down and this "surplus" voltage, combined with an "under-voltage" znere volt-drop will leave considerably more than the forecast voltage available at the probes. A silicon diode D1 is therefore connected in series with the zener to decrease the probe voltage by a further 0.6 volt or so.
During your final testing and before boxing your circuit, the most suitable connection, A or B, is selected for the positive probe wire. The aim is to have the circuit oscillating with short circuited probes but to stop oscillation with the least amount of resistance or the inclusion of a diode (try both ways) between the probes.
No sensitivity control is fitted because I don't think it is worthwhile nor necessary and would spoil the simplicity of the circuit.
There is no easy way to proof the unit against connection to the supply. Be careful if checking AC line wiring and switch off first. In a similar way, if checking electronic apparatus for unwanted bridging between Veroboard tracks, for instance or a suspected crack in a PCB (Printed Circuit Board) track switch off power first also. Good luck!

author:Tony van Roon,
